The Papenmeier Lumistar luminaires USL 13-LED and USL 33-LED are designed for universal applications, suitable for mounting on sight glass fittings.

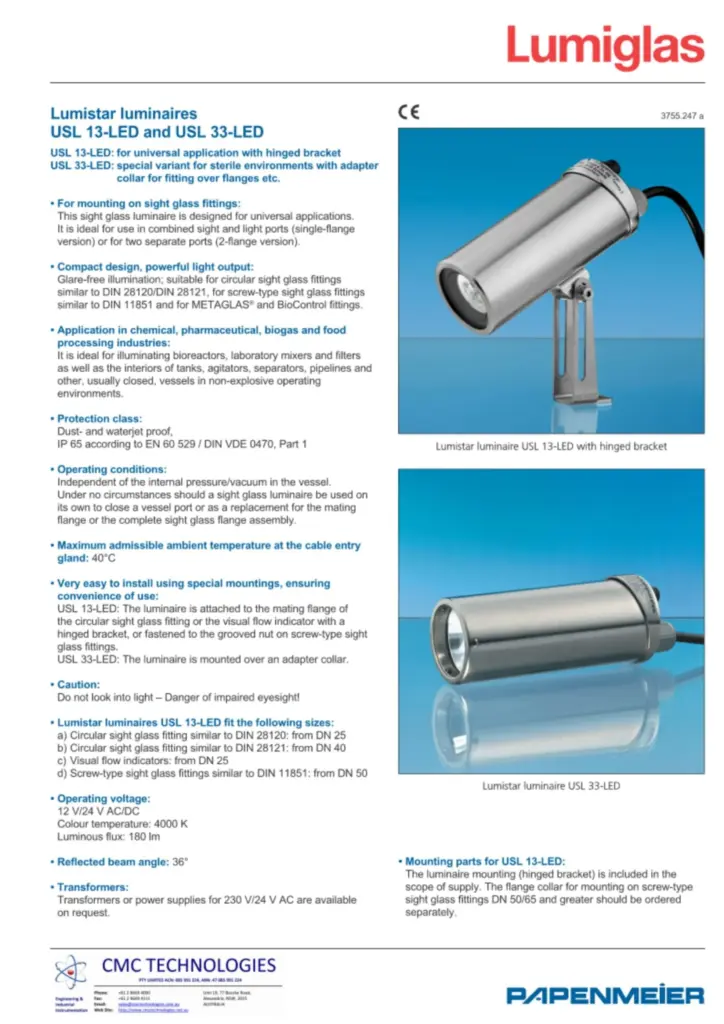

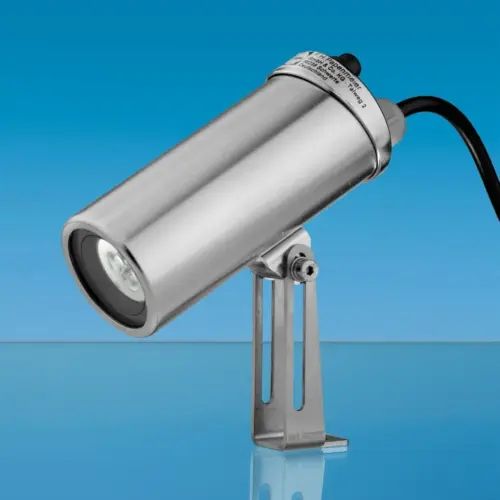

The USL 13-LED features a hinged bracket for versatile installation, while the USL 33-LED is a special variant for sterile environments with an adapter collar for fitting over flanges.
These luminaires are ideal for combined sight and light ports (single-flange version) or for two separate ports (two-flange version). They provide glare-free illumination and are compatible with circular sight glass fittings similar to DIN 28120/DIN 28121, screw-type sight glass fittings similar to DIN 11851, as well as METAGLAS and BioControl fittings.
Applications
They are suitable for use in chemical, pharmaceutical, biogas, and food processing industries. Typical uses include illuminating bioreactors, laboratory mixers, filters, tanks, agitators, separators, pipelines, and other normally closed vessels in non-explosive environments.
Protection Class
The luminaires have an IP65 rating according to EN 60529 / DIN VDE 0470 Part 1, making them dust- and waterjet-proof.
Operating Conditions
The luminaires operate independently of internal pressure or vacuum in the vessel but should never be used alone to close a vessel port or replace the mating flange or complete sight glass flange assembly. The maximum admissible ambient temperature at the cable entry gland is 40°C.
Installation
- USL 13-LED: Attached to the mating flange of circular sight glass fittings or visual flow indicators using a hinged bracket; fastened to grooved nuts on screw-type sight glass fittings.
- USL 33-LED: Mounted over an adapter collar.
Specifications
- Operating voltage: 12 V or 24 V AC/DC.
- Colour temperature: 4000 K.
- Luminous flux: 180 lm.
- Reflected beam angle: 36°.
- IP Rating: IP65 rating according to EN 60529 / DIN VDE 0470 Part 1
Mounting Compatibility
- Circular sight glass fittings similar to DIN 28120 from DN 25.
- Circular sight glass fittings similar to DIN 28121 from DN 40.
- Visual flow indicators from DN 25.
- Screw-type sight glass fittings similar to DIN 11851 from DN 50.
Materials and Dimensions
- Luminaire body and cover: Stainless steel 1.4404.
- Hinged bracket and flange collar for screw-type fittings DN 50/65: Stainless steel 1.4301.
- Connecting cable: Standard length of 3 m (3 x 0.75 mm²), other lengths available on request.
Accessories (only for USL 13-LED, sold separately)
- Flange collar DN 50 stainless steel (no hinged bracket needed), Ø62 mm
- Flange collar DN 65 stainless steel (no hinged bracket needed), Ø65 mm
