Explosion Proof Light BAK85 9W 240VAC LED Tank Inspection Light | Warom

Ask for price
Lead time: 1-3 Weeks depending on factory availability.
We will advise the lead time along with pricing info .
Please fill out the RFQ form below to receive a quote.

BAK85 9W 240VAC Tank Inspection Lights Explosion Proof Lights are Constructed with an enclosure made of copper-free aluminium and featuring a powder-coated yellow surface (RAL1021), these light fittings are durable and resistant to corrosion. The BAK85 Series complies with IECEx and ATEX certifications, ensuring their adherence to international safety standards.

SKU: WT65BAK859277
Category:

Description

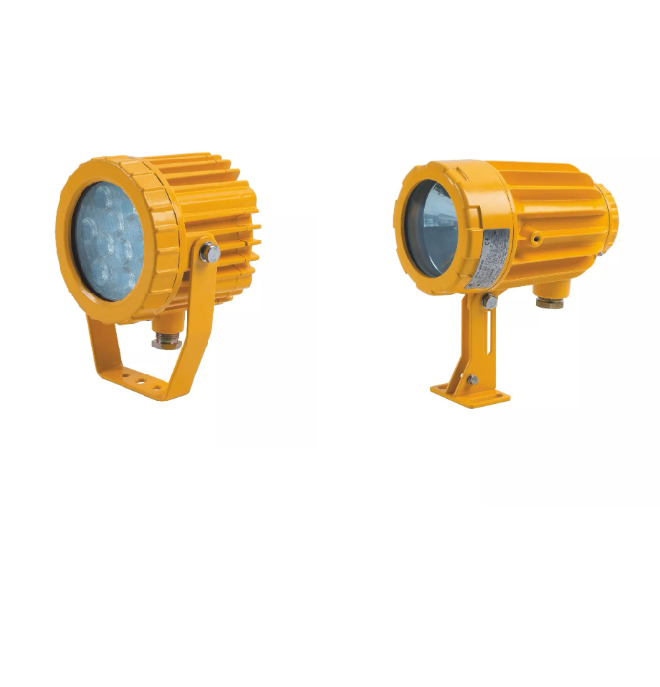

The BAK85 Series highly durable BAK85 9W 240VAC LED Explosion Proof Light or Tank Inspection Light Fittings (Ex d IIB) offered by CMC Technologies are designed to provide safe and reliable lighting solutions in hazardous environments. These explosion proof light fittings comply with explosion protection standards set by CENELEC (ATEX), IEC, and NEC. They are suitable for use in both Zone 1 and Zone 2, as well as Zone 21 and Zone 22 areas.

Efficient BAK85 Series Explosion Proof Light or Tank Inspection Light for hazardous environments is equipped with a 9W LED, providing high light efficiency and a long service life. Two optional bracket types are available for easy installation and flexibility.

Features

  • Explosion protection according to CENELEC (ATEX), IEC (IECEx), and NEC standards
  • Suitable for Zone 1, Zone 2, Zone 21, and Zone 22 areas
  • Available with a 9W LED for efficient and long-lasting illumination
  • Copper-free aluminium enclosure with a powder-coated yellow surface
  • IECEx and ATEX certified

Specifications

  • Ex-mark: Ex db IIC T6 Gb
  • Voltage: AC: 100~250VAC, 50/60Hz, DC: 12~48V
  • LED power (W): 9W
  • Colour Temperature (CCT): 5700K Cool White
  • Lamp Power: LED lamp 9W
  • Rated voltage: 100-240V AC 50/60Hz / 12-24V DC: 24V AC/DC
  • Degree of Protection: IP66
  • Enclosure Material: Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021)
  • Glass Cover: Toughened glass, impact resistance and high light transmission
  • Exposed Fastener: Stainless steel
  • Earthing protection: M5 (internal & external earth bolts)
  • Degree of protection: IP66/IP77
  • Ambiental temperature: -40 deg ~ +55 deg
  • Terminal: 3 x 1.5~2.5mm (L+N+PE)
  • Cable entries: M20 x 1.5
  • Cable gland: Supplied with seal gasket and gland nut, cable gland on request
  • Applicable cable outer diameter: 6~12 (mm)

Explosion Protection Class of BAK85 9W 240VAC LED Explosion Proof Light

Global (IECEX): IECEx CNEX 18.0033X
Gas and dust: IECEx TPS 18.0011X

Europe (ATEX): CTPS 18 ATEX 089761 0007X
Gas and dust: Ex db op is IIC T6 Gb  Ex tb op is IIIC T80℃ Db IP66/IP67

Certificates: IECEx and ATEX
Conformity to standards: EN 600079-0, EN 60079-1, EN 60079-31 / IEC 60079-0, IEC 60079-1, IEC 60079-31
