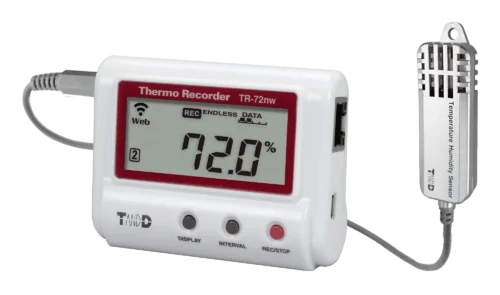

T&D TR‑72nw‑S High Accuracy Temperature & Humidity Logger

High accuracy temperature and humidity data logger for precise two‑channel environmental monitoring.

The TR‑72nw‑S is an Ethernet temperature humidity logger supplied with a high‑precision sensor, providing reliable measurement across wider temperature and humidity ranges. Wired LAN enables automatic upload of data and alerts to the T&D cloud service, while USB supports local data download, reporting and configuration from a PC.

Specifications

• Model: TR‑72nw‑S
• Measurement channels: Temperature 1ch, humidity 1ch (high‑precision type)
• Temperature measurement range: -25 to 70 °C
• Humidity measurement range: 0 to 99 %RH
• Temperature accuracy:
  • ±0.3 °C (10 to 40 °C)
  • ±0.5 °C (all other temperatures)
• Humidity accuracy: ±2.5 %RH (15 to 35 °C, 30 to 80 %RH)
• Temperature resolution: 0.1 °C
• Humidity resolution: 0.1 %RH
• Sensor type: Thermistor / polymer resistance
• Sensor response time (90%): Approx. 7 minutes
• Logging capacity: 8,000 data sets (all channels per set)
• Recording intervals: 15 options from 1 sec to 60 min
• Recording modes: Endless or one‑time
• Display: LCD with measurements (fixed or alternating), status, mode and battery warning
• Auto‑upload interval: OFF, 1–30 min or 1–24 hrs (selectable)
• Communication interfaces:
  • Wired LAN: 100BASE‑TX/10BASE‑T (RJ45), HTTP, DHCP, DNS
  • USB: USB 2.0 (Mini‑B)
• Power:
  • Battery: 2 × AA alkaline (LR6) or 2 × AA Ni‑MH
  • External: USB bus 5 V 200 mA, AC adaptor (AD‑05A2/AD‑05C2), PoE IEEE 802.3af
• Battery life (typical):
  • Approx. 10 days (1‑min auto‑upload)
  • Approx. 1 year (1‑hr auto‑upload)
  • Approx. 1.5 years (12‑hr+ auto‑upload or auto‑upload OFF)
• Operating environment: −10 to 60 °C; ≤90 %RH (no condensation)
• Dimensions: 58 × 78 × 26 mm
• Weight: Approx. 55 g
• Included items: High‑precision temperature‑humidity sensor SHA‑3151 ×1, 2 × AA alkaline batteries, registration code label, USB Mini‑B cable, manual set
• Software/apps:
  • PC (Windows): TR7 for Windows, T&D Graph, T&D Data Server
  • Mobile (iOS/Android): T&D Thermo

Common Applications

• Precision environmental monitoring
• Warehouses and controlled storage areas
• Offices and commercial buildings
• Compliance‑driven temperature and humidity logging
• Long‑term monitoring with cloud access and alerts

The TR‑72nw‑S data logger combines high accuracy temperature and humidity data logger performance with Ethernet temperature humidity logger connectivity for dependable, long‑term monitoring.
