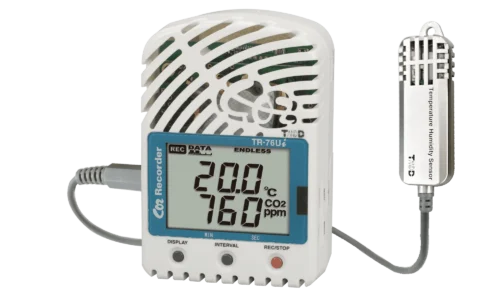

T&D TR‑76Ui‑S USB CO2, Temperature & Humidity Logger

USB CO2 data logger designed for accurate CO₂, temperature and humidity monitoring with a high precision sensor.

The TR‑76Ui‑S is a three‑channel logger measuring CO₂ concentration alongside high precision temperature and humidity. Simple USB connection enables quick setup, data download and live monitoring via Windows software, while a CO₂ warning function supports timely ventilation control in classrooms and buildings.

Specifications

• Model: TR‑76Ui‑S (TR‑7Ui Series)
• Measurement channels: CO₂ concentration (1ch), temperature (1ch), humidity (1ch)
• CO₂ sensor: Internal NDIR
• CO₂ range: 0 to 9,999 ppm
• CO₂ accuracy: ±(50 ppm + 5% of reading) at 5,000 ppm or less
• CO₂ resolution: Minimum 1 ppm
• CO₂ response time (90%): Approx. 1 min
• Temperature sensor: SHA‑3151 high‑precision type (thermistor)
• Humidity sensor: Polymer resistance
• Temperature range: −25 to 70 °C
• Humidity range: 0 to 99 %RH (from −20 °C)
• Temperature accuracy: ±0.3 °C (10 to 40 °C), ±0.5 °C (other temperatures)
• Humidity accuracy: ±2.5 %RH (15 to 35 °C, 30 to 80 %RH)
• Resolution: 0.1 °C, 0.1 %RH
• Temp/RH response time (90%): Approx. 7 min
• Logging capacity: 8,000 data sets (all channels per set)
• Recording intervals: 15 options from 1 sec to 60 min
• Recording modes: Endless or one‑time
• Display: LCD showing CO₂, temperature or humidity (fixed/alternating), recording status, mode, battery level
• Communication interfaces: USB 2.0 (Mini‑B), serial
• External alarm terminal: Open drain output (OFF voltage <30 V DC; ON current <0.1 A; ON resistance ~15 Ω)
• Power: AC adaptor (AD‑06A1 or AD‑06C1) or 4 × AA alkaline batteries
• Battery life: Approx. 2 days on batteries only (without AC adaptor)
• Operating environment: 0 to 45 °C; ≤90 %RH (no condensation)
• Dimensions: H 96 × W 66 × D 46 mm (excluding protrusions and sensor)
• Weight: Approx. 120 g
• Included items: 4 × AA alkaline batteries, AC adaptor (AD‑06A1 or AD‑06C1), USB Mini‑B cable (US‑15C), temperature‑humidity sensor THA‑3001 or SHA‑3151, manual set
• Software: CO2 Recorder for Windows; T&D Graph for viewing and analysis
• Additional function: Atmospheric pressure correction for improved CO₂ measurement reliability

Common Applications

• Classroom and building ventilation timing using CO₂ warnings
• Indoor air quality monitoring with strict temperature and humidity control
• Facilities and environmental data logging with PC‑based analysis
• On‑site notification via external alarms (with compatible devices)

The TR‑76Ui‑S data logger combines USB CO2 data logger capability with a high precision temperature and humidity logger for reliable IAQ monitoring.
